Production Introduction

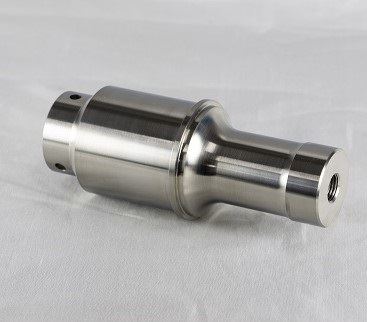

The titanium Grade 5 ultrasonic horn is an important part of the ultrasonic vibration system. In the application of ultrasonic technology, there are two main functions of the titanium Grade 5 ultrasonic horn.
One is to amplify the amplitude or gather energy, and the other is impedance matching so that the ultrasonic energy can be better transmitted from the transducer to the load.
In the application of high-intensity ultrasound, such as processing, welding, crushing, tin dipping, and other aspects, the horn mainly plays the role of amplitude amplification and energy accumulation.
In these applications, the titanium Grade 5 ultrasonic horn is required to have the largest amplification factor possible, and then other parameters are selected according to different applications.
Materials Performance
GR5 titanium alloy has a series of advantages, such as excellent corrosion resistance, small density, high specific strength, good toughness, and weldability. It has been successfully applied in aerospace, petrochemical, shipbuilding, automobile, medicine, and other departments.
Executive standard: AMS 4911h, mil-t-9046j, ASTM b265, dms1592f
Main components: titanium (TI) residue, 5.5 ≤ aluminum (AL) ≤ 6.8, 3.5 ≤ vanadium (V) ≤ 4.5, nitrogen (n) ≤ 0.05, carbon (c) ≤ 0.10, hydrogen (H) ≤ 0.015,
Iron (FE) ≤ 0.30, oxygen (o) ≤ 0.20
Physical properties: density 4.51g/cm3
Mechanical properties: tensile strength: σ B ≥ 925mpa, yield strength σ B ≥ 870MPa: elongation: δ ≥10%
Corrosion resistance: Titanium has strong corrosion resistance in many media, especially in neutral and oxidizing media. It can also be used in some dilute reducing acids, such as nitric acid of various concentrations from normal temperature to boiling point.
It has good corrosion resistance to most alkali solutions, such as saturated solutions of barium hydroxide, calcium hydroxide and magnesium hydroxide at room temperature, but can not be used for boiling sodium hydroxide solutions.
Titanium is not corroded at all in seawater, and it is also very corrosion resistant in most organic acids (except formic acid and oxalic acid). It has excellent ZD corrosion resistance in wet chlorine, chlorite, hypochlorite and other chloride solutions. The corrosion resistance in NaCl solution increases with the increase of pH value.
Application fields: aerospace, chemical equipment, etc.
